Variants of TK34

The TK34 family shares a bimetal disc core and full customisation, yet differs in reset mode and current rating: TK34A is automatic-reset and carries up to 45 A; TK34R adds an internal heater for faster, targeted switching up to 25 A; TK34M requires a manual reset and handles 40 A for safety-critical scenarios. All models cover roughly –25 °C…120 °C and exceed 100 000 cycles at moderate loads, making them drop-in solutions from consumer heaters to industrial motors. Selecting the variant is essentially a trade-off between hands-off convenience, response speed, and the need for operator inspection.

8abc technical library

Reference

Back to the libraryReviewed by 8abc engineering

Still have a question about your application?

Talk to an engineer — we answer in your language, with a quote within 24 hours.

Ask an engineer Email us

Keep reading

More from the technical library

View all articles

Certified vs Counterfeit: The True Cost of a €1 Thermostat

A commodity KSD301-class thermostat optimises for unit price; a certified device optimises for a predictable, documented failure mode — the entire point of a protective component. This guide breaks down where the savings come from, why counterfeit certification marks are widespread at the bottom of the market, how to verify a mark against the certifying body's register, and how to migrate from a commodity part to a certified, factory-calibrated equivalent such as the TK24, TK77DC, or TK224.

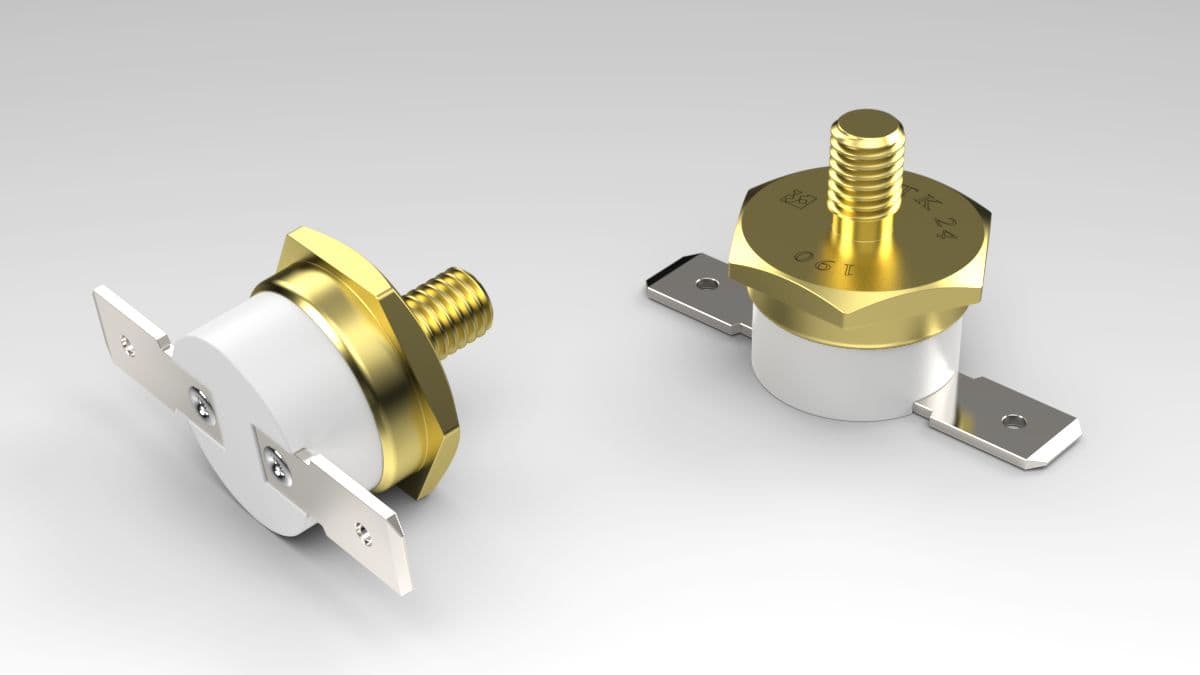

TK24 or TK24HT

TK24 is a versatile ½-inch thermostat that handles higher currents (16 A/10 A) up to 200 °C, with contacts configurable to open or close on temperature rise and IP64 sealing when required. TK24HT trades current capacity for extreme-temperature endurance, surviving to 425 °C with a fixed “opens-on-heat” contact scheme, ±6 °C tolerance and IP4X protection. In short: choose TK24 for mainstream 200 °C duty with better sealing, and TK24HT for high-heat safety cut-outs where lower current is acceptable.

Parameters overview

This reference piece walks through 14 critical parameters—rated voltage/current, temperature range and hysteresis, cycle life, insulation strength, IP rating, power factor, and reset style—that govern a bimetal thermostat’s safety, accuracy, and longevity. Each parameter is defined, its design impact explained, and typical values given (e.g., ≤250 V, 100 000 cycles, ±3 °C tolerance). Taken together, the list serves as a designer’s checklist for matching a thermostat to demanding consumer or industrial applications.

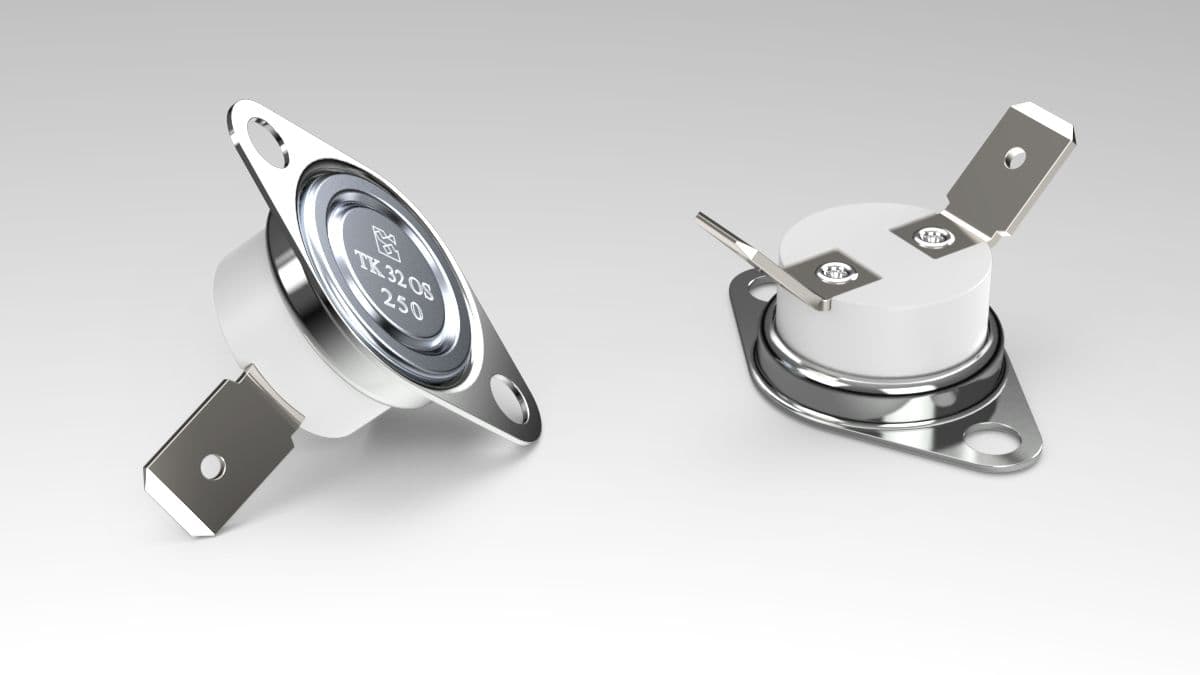

TK32 or TK32OS

Both TK32 limiters break the circuit between 30 °C and 250 °C, but TK32 resets manually after cooling while TK32OS is a one-shot device that stays open permanently. TK32 therefore suits equipment that a technician can inspect and re-activate, whereas TK32OS guarantees a non-restartable shutdown in fire-safety, medical, or chemical systems. Accuracy is similar (±3 °C/±6 °C), so the decisive factor is whether the application must allow or forbid reset.

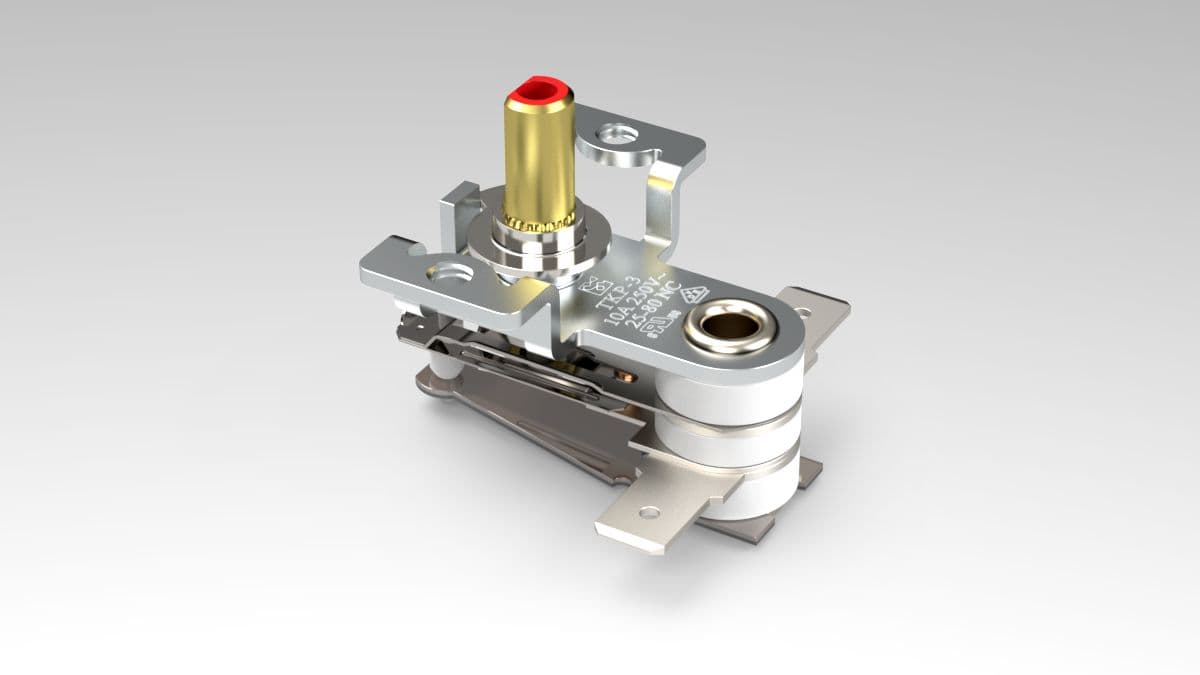

TKP or TKPCS

TKP and TKPCS are shaft-adjustable, automatically reset thermostats rated up to 16 A and 250 VAC, but TKP offers finer tolerances (±3 °C…±10 °C), reset offsets from 5 °C to 15 °C, and operation down to –45 °C. TKPCS adds current sensitivity, uses dual “Low/High” tolerance bands (±20 °C/±10 °C) with a fixed 15 °C reset, and has higher contact resistance (0.15 Ω) that is acceptable in power-regulation roles. Engineers pick TKP when tight thermal control or sub-zero service is paramount, and TKPCS when load-dependent trip behaviour and simpler calibration are more valuable.

TK77DC for DC Circuits

The TK77DC bimetal thermostat is purpose-built for direct current circuits operating at 12 V, 24 V, and 48 V with up to 16 A. Unlike AC thermostats, it employs arc-suppression geometry suited to DC breaking characteristics. It covers −45 °C to 130 °C, fits the same half-inch footprint as the TK24, and automatically resets on cooling. Typical applications include battery management systems, EV thermal protection, solar panel junction boxes, UPS equipment, LED drivers, and telecommunications hardware.
